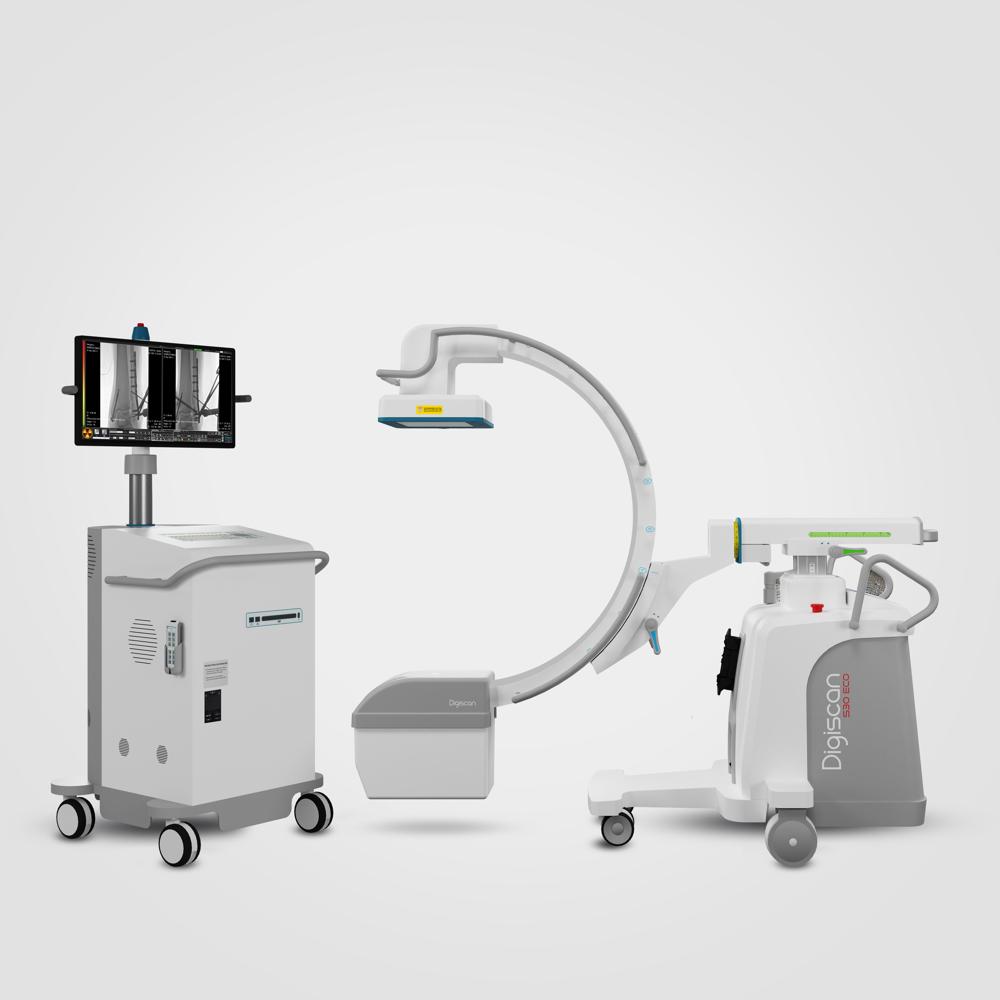

Digiscan S20 ECO/S30 ECO

Get a Price/Quote

Product Details:

Material High-grade Medical Plastic and Metal Alloys
Wear Type Non-wearable, Mobile Unit
Condition New
Technology Digital Flat Panel Detector (FPD), C-Arm Imaging
Portable Yes, Mobile with Lockable Wheels
Wall Mounted No, Floor-standing unit
Light Source X-ray Tube, Integrated LED Indicator
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Digiscan S20 ECO/S30 ECO Price And Quantity

Minimum Order Quantity 1 Unit

Digiscan S20 ECO/S30 ECO Product Specifications

Condition New
Material High-grade Medical Plastic and Metal Alloys
Camera Integrated Imaging Sensor (Flat Panel)
Light Source X-ray Tube, Integrated LED Indicator
Usage Orthopedic, Surgical, Interventional Procedures, Fluoroscopy
Display Large Full HD Medical Monitor (Touchscreen)
Light LED Indicator Lights on Unit
Wear Type Non-wearable, Mobile Unit
Operating Type Electrical, Manual Controls & Touchscreen Interface
Variable Speed Yes, Variable Motorized Movements
Voltage 230V AC
Technology Digital Flat Panel Detector (FPD), C-Arm Imaging
Power Source Electric
Portable Yes, Mobile with Lockable Wheels
Wall Mounted No, Floor-standing unit
Frequency Range 50/60 Hz (Input Power)
Speed High-speed Real-Time Imaging

Frame Rate Up to 30 Frames Per Second
Application Areas Hospital, Operation Theater, ICU, Emergency
Monitor Size 21.5 inch Medical Grade Full HD
Cooling System Advanced Air-Cooled X-ray Tube
Noise Level Minimal, Optimized for Medical Environment
Connectivity Ethernet, USB, DICOM, Wireless Ready
Software Features User Friendly GUI, Last Image Hold, Digital Image Enhancement
Remote Control Wired and Wireless Footswitch Available
Chassis Design Stable Low-Profile with Easy Mobility
Patient Safety Features Low Dose X-ray with Dose Control Software
Movement Motorized Vertical, Orbital, and Angular Movements
Image Storage Capacity Large Internal Storage, DICOM Compatible
Input Protection Overload Circuit Protection
Upgrade Options 3D Imaging, Wi-Fi Image Transmission, Video Output
X-ray Generator Type High Frequency
Imaging Detector Size 25 x 25 cm (Flat Panel)

Product Description

Product: C-Arm with Dynamic Flat Panel Detector (FPD)

Series: Digiscan S20 ECO/S30 ECO

Model: HF59R

Rating: 6 KW

Application: For ortho, gastro, spinal / neuro, urology, peripheral DSA and pacemaker procedures under fluoroscopy.

Allengers introduces top-end indigenously developed High-Frequency C-Arm with the Flat Panel Detector (FPD). Due to its high image quality and easy maneuverability, it enhances the overall workflow in all the applications.

Special features:

Dynamic Flat Panel Detector (FPD) available in 21 cm x 21 cm and 30 cm x 30 cm size (as per user intended applications).
Powered by Synergy FP-CR acquisition software.
DSA package.
Preview collimation.
Cine mode is used upto 150 frames / loop.
Complete DICOM based system makes it easy to share and archive patient images and data.
Optimised digital SPOT algorithms to produce excellent image quality at extremely low dose.
Better image quality at lower dose because of higher DQE and advanced image processing.

Versatile and Precise Imaging

The Digiscan S20 ECO/S30 ECO delivers exceptional digital imaging for orthopedic, surgical, and interventional procedures. Its flat panel detector and high-frequency generator support detailed real-time imaging, while advanced software optimizes image quality. The unit's ergonomic design and stable, low-profile chassis allow easy mobility across various clinical departments, making it ideal for hospital, ICU, and emergency settings.

User-Friendly Operation and Advanced Control

Featuring a large 21.5 inch Full HD medical-grade touchscreen, the Digiscan S20 ECO/S30 ECO provides intuitive control. Motorized vertical, orbital, and angular movements, along with variable speed and remote footswitch operation, streamline workflow. Safety is enhanced through overload circuit protection and low-dose technology, ensuring patient and staff welfare during repetitive imaging.

Connectivity and Future-Readiness

With DICOM compatibility, robust internal storage, and multiple connectivity options including Ethernet, USB, and wireless readiness, this system integrates seamlessly with modern healthcare IT environments. Upgradeable features such as 3D imaging and Wi-Fi image transmission prepare facilities for evolving imaging demands, supporting efficient diagnostics and patient management.

FAQ's of Digiscan S20 ECO/S30 ECO:

Q: How does the Digiscan S20 ECO/S30 ECO improve workflow in hospital and emergency environments?

A: Its easy mobility, motorized movements, and wireless control options enable quick positioning and operation, streamlining imaging processes in fast-paced settings like operating theaters and ICUs.

Q: What are the safety features for patients and staff using this C-arm system?

A: The system utilizes low-dose X-ray technology, dose control software, and overload circuit protection, which collectively minimize radiation exposure and enhance operational safety for both patients and healthcare professionals.

Q: When should healthcare professionals consider using the Digiscan S20 ECO/S30 ECO?

A: It is ideal for orthopedic, surgical, interventional procedures, and fluoroscopy, especially in environments that demand high-speed, real-time imaging and portable equipment, such as emergency rooms and operation theaters.

Q: Where can the Digiscan S20 ECO/S30 ECO be deployed?

A: This mobile C-arm system is suitable for various clinical environments including hospitals, operation theaters, ICUs, and emergency departments, due to its compact, floor-standing design and lockable wheels.

Q: What advantages does the flat panel detector provide compared to traditional systems?

A: The 25 x 25 cm digital detector offers high-resolution, real-time imaging at up to 30 frames per second, alongside digital image enhancement, ensuring more accurate diagnostics than conventional image intensifiers.

Q: How easy is it to connect and store images from the device?

A: With large internal storage, DICOM compatibility, and multiple connectivity options such as Ethernet, USB, and wireless, images can be securely stored and easily integrated with hospital information systems.

Q: What future upgrade options are available for this imaging system?

A: Facilities can opt for additional capabilities like 3D imaging, Wi-Fi image transmission, and video output, allowing adaptation to evolving diagnostic and workflow requirements.
