Remote Controlled Digital Radiography and Fluoroscopy System

उत्पाद वर्णन

Product:Remote Controlled Digital Radiography and Fluoroscopy System

Models:MARS 50 / 50+ / 65 / 80

Ratings:50/65/80 KW (630-1000 mA)

Series:ECO TRACK-DRF

Application :Remote controlled advance digital radiography and fluoroscopy procedures for special investigations.

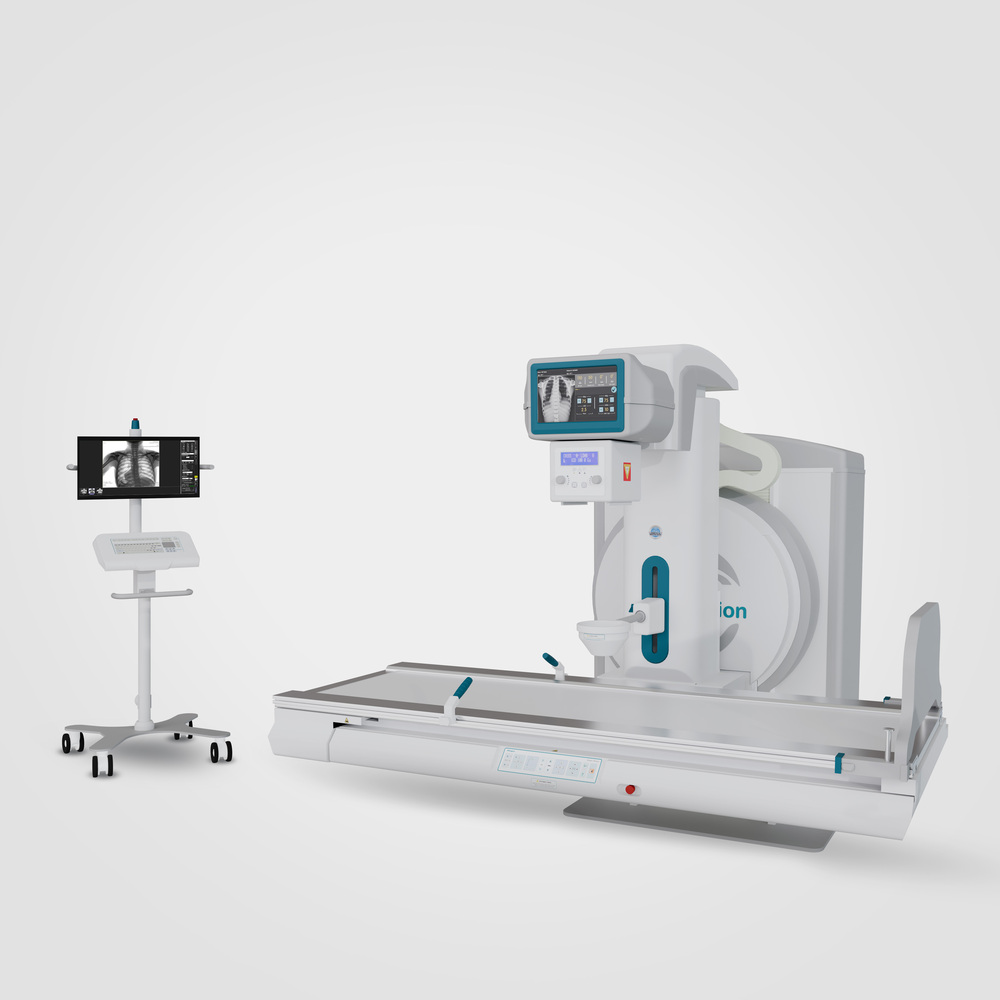

Allengers ECO TRACK-DRF is a remote-controlled RF system combines flexibility with advanced engineering, thereby setting new standards for diagnostic image quality in order to provide practitioners with an effective diagnostic tool, and thereby making the task easy, effortless and hygienic for both patient and practitioner with a host of special features.

Special Features:

• Fully Digital, Fully Motorized auto tracking system for Digital Radiography and
• fluoroscopy examinations.
• High-resolution 3K x 3K Dynamic and Static Flat panel detector.
• Auto tracking of Tube with detector at Table Bucky in Horizontal & Vertical
• positions.
• Auto tracking of Tube with detector in Vertical Bucky Stand.
• Auto Positioning & tracking as per APR view (optional).
• Pulsed Fluoroscopy, Digital Spot and Radiography Mode.
• Automatic Image stitching in Table & VBS (optional).
• Dual Energy Exposure (optional).
• Patient table with -12 to +90 of rotational movement (Auto stop at 0).
• Non-Contact Anti-collision system for patient and system safety.
• Touch screen over tube head for image preview.
• Exposure and movement control from inside and outside of examination room.
• Automatic Exposure control feature available (On Table side).
• Digital DAP for Patient Dose monitoring (optional).
• DICOM 3.0 Compatible.
• Reporting Workstation (optional).

Superior Imaging & Real-Time Diagnostics

Experience unmatched clarity with a dynamic flat panel detector offering image resolutions up to 3.5 lp/mm. Real-time imaging at 30 frames per second and high-precision positioning enable swift and accurate diagnostics for bones, soft tissue, and gastrointestinal tract studies. The adjustable carbon fiber table and C-arm gantry support comprehensive clinical applications.


Seamless Remote Operation & Mobility

Remote controlled functions, including table movement and image acquisition, allow operation from up to 15 meters away. The motorized base with locking wheels ensures safe and easy relocation within medical facilities. An integrated UPS provides backup power for 30 minutes, ensuring uninterrupted procedures during brief power outages.


Advanced Software & Data Management

Fully DICOM-compatible, the system features sophisticated dose management, multi-image acquisition, and secure patient data archiving. Export images in DICOM, JPEG, BMP, or TIFF formats and store up to 500,000 images for streamlined data handling and easy integration into existing medical record systems.
