Remote Controlled Digital Radiography and Fluoroscopy System

Get a Price/Quote

Product Details:

Dimension (L*W*H) Approx. 2700 x 940 x 2410 mm
Color Code Medical White & Grey
Properties Remote operation, Real-time imaging, High-resolution CCD detector, User-friendly interface
Frequency 50/60 Hz
Accuracy High positioning and imaging precision
Height Adjustable patient table: 470 mm to 970 mm
Product Type Remote Controlled Digital Radiography and Fluoroscopy System
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Remote Controlled Digital Radiography and Fluoroscopy System Price And Quantity

Minimum Order Quantity 1 Unit

Remote Controlled Digital Radiography and Fluoroscopy System Product Specifications

Treatment Type Non-invasive diagnostic imaging
Humidity Range 20% to 80% (non-condensing)
Temperature Range 10C to 40C operating temperature
Material High-grade Steel and Lead shielding
Power Source Electric
Use Diagnostic imaging of bones, soft tissue, and gastrointestinal tract
Automation Grade Automatic & Manual
Suitable For Hospitals, Clinics, Diagnostic Centers
Storage Capacity Up to 500,000 images (Digital Storage)
Weight Approx. 750 kg
Application Medical Diagnostics, Radiography and Fluoroscopy
Phase Single Phase
Power 8 kW
Function Digital radiographic & fluoroscopic image acquisition and processing
Display Type Touch-screen LCD
Accuracy High positioning and imaging precision
Height Adjustable patient table: 470 mm to 970 mm
Display High-resolution Flat Panel Detector Monitor
Product Type Remote Controlled Digital Radiography and Fluoroscopy System
Shape Rectangular table with C-arm gantry
Dimension (L*W*H) Approx. 2700 x 940 x 2410 mm
Voltage 230-240V AC
Color Code Medical White & Grey
Properties Remote operation, Real-time imaging, High-resolution CCD detector, User-friendly interface
Frequency 50/60 Hz

System Mobility Motorized base with locking wheels
X-ray Tube Focal Spot 0.6/1.2 mm
Image Resolution Up to 3.5 lp/mm
Software Features Dose management, Patient data archiving, Multi-image acquisition
Backup Power Inbuilt UPS (30 mins backup)
DICOM Compatibility Yes
Detector Type Dynamic Flat Panel Detector
Tabletop Material Radiolucent carbon fiber
Image Acquisition Speed Real-time (up to 30 Frames/sec)
Collimation Electronic, programmable
Maximum Patient Weight Up to 250 kg
Remote Control Range Up to 15 meters
Safety Certificates CE, ISO 13485 certified
Exposure Modes Manual, Auto, Pediatric, Low Dose
Service & Support 24/7 Technical Support
Grid Ratio 12:1
Image Export Formats DICOM, JPEG, BMP, TIFF
Tabletop Movement 360° rotation, longitudinal & lateral movement
Noise Level < 55 dB

Product Description

Product:Remote Controlled Digital Radiography and Fluoroscopy System

Models:MARS 50 / 50+ / 65 / 80

Ratings:50/65/80 KW (630-1000 mA)

Series:ECO TRACK-DRF

Application :Remote controlled advance digital radiography and fluoroscopy procedures for special investigations.

Allengers ECO TRACK-DRF is a remote-controlled RF system combines flexibility with advanced engineering, thereby setting new standards for diagnostic image quality in order to provide practitioners with an effective diagnostic tool, and thereby making the task easy, effortless and hygienic for both patient and practitioner with a host of special features.

Special Features:

Fully Digital, Fully Motorized auto tracking system for Digital Radiography and
fluoroscopy examinations.
High-resolution 3K x 3K Dynamic and Static Flat panel detector.
Auto tracking of Tube with detector at Table Bucky in Horizontal & Vertical
positions.
Auto tracking of Tube with detector in Vertical Bucky Stand.
Auto Positioning & tracking as per APR view (optional).
Pulsed Fluoroscopy, Digital Spot and Radiography Mode.
Automatic Image stitching in Table & VBS (optional).
Dual Energy Exposure (optional).
Patient table with -12 to +90 of rotational movement (Auto stop at 0).
Non-Contact Anti-collision system for patient and system safety.
Touch screen over tube head for image preview.
Exposure and movement control from inside and outside of examination room.
Automatic Exposure control feature available (On Table side).
Digital DAP for Patient Dose monitoring (optional).
DICOM 3.0 Compatible.
Reporting Workstation (optional).

Superior Imaging & Real-Time Diagnostics

Experience unmatched clarity with a dynamic flat panel detector offering image resolutions up to 3.5 lp/mm. Real-time imaging at 30 frames per second and high-precision positioning enable swift and accurate diagnostics for bones, soft tissue, and gastrointestinal tract studies. The adjustable carbon fiber table and C-arm gantry support comprehensive clinical applications.

Seamless Remote Operation & Mobility

Remote controlled functions, including table movement and image acquisition, allow operation from up to 15 meters away. The motorized base with locking wheels ensures safe and easy relocation within medical facilities. An integrated UPS provides backup power for 30 minutes, ensuring uninterrupted procedures during brief power outages.

Advanced Software & Data Management

Fully DICOM-compatible, the system features sophisticated dose management, multi-image acquisition, and secure patient data archiving. Export images in DICOM, JPEG, BMP, or TIFF formats and store up to 500,000 images for streamlined data handling and easy integration into existing medical record systems.

FAQ's of Remote Controlled Digital Radiography and Fluoroscopy System:

Q: How does the remote control feature enhance the system's usability?

A: The remote control allows operators to manage imaging procedures from up to 15 meters away, improving safety and workflow efficiency. This function is particularly beneficial in reducing exposure and facilitating complex patient positioning without direct physical interaction.

Q: What are the main benefits of the dynamic flat panel detector in this radiography and fluoroscopy system?

A: The dynamic flat panel detector enables high-resolution imaging (up to 3.5 lp/mm) and real-time acquisition at 30 frames per second, resulting in enhanced image quality for precise diagnostics of bones, soft tissue, and gastrointestinal structures.

Q: Where can this digital radiography and fluoroscopy system be effectively used?

A: This system is suitable for hospitals, clinics, and diagnostic centers. Its flexible design, high patient weight capacity (up to 250 kg), and robust mobility make it ideal for a variety of medical imaging applications in diverse healthcare environments.

Q: What is the process for backing up images and how much data can be stored?

A: Images can be exported in multiple formats (DICOM, JPEG, BMP, TIFF) and securely archived using the system's internal digital storage, which can hold up to 500,000 images. This ensures easy retrieval and long-term data management for patient records.

Q: What safety and quality standards does the system meet?

A: The system is CE and ISO 13485 certified, guaranteeing compliance with international safety and quality regulations. Additionally, the radiolucent carbon fiber tabletop and high-grade steel with lead shielding enhance patient and operator protection.

Q: When is it safe to use the system during power interruptions?

A: The inbuilt UPS provides up to 30 minutes of backup power, allowing safe completion or pausing of procedures in case of temporary electrical outages, thus minimizing risks and ensuring patient safety.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Remote Controlled RF Table' category

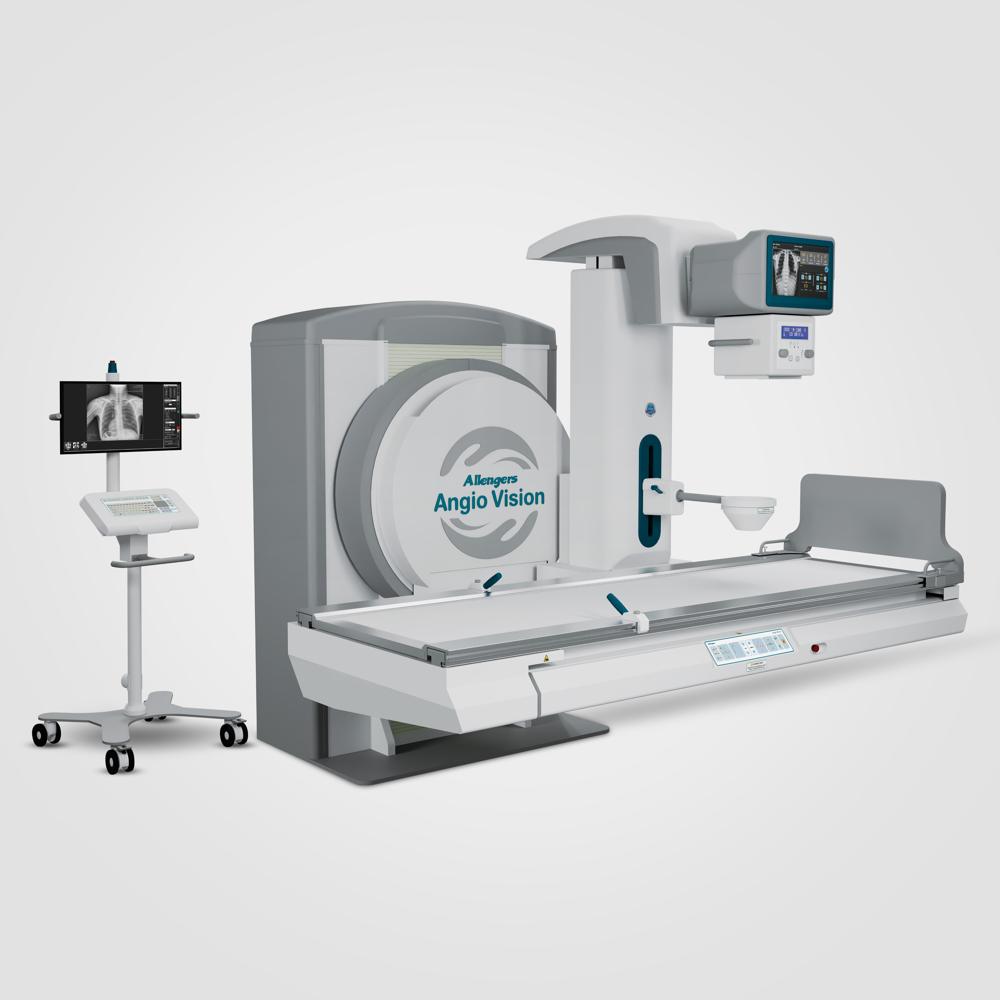

Remote Controlled RF Table-X-Ray Systems Application : Medical Material : Plastic Use : hospital Product Type : TableXRay Systems Portable : Yes Storage Instructions : Dry Place Condition : New Display : LED Automation Grade : No

Send Inquiry

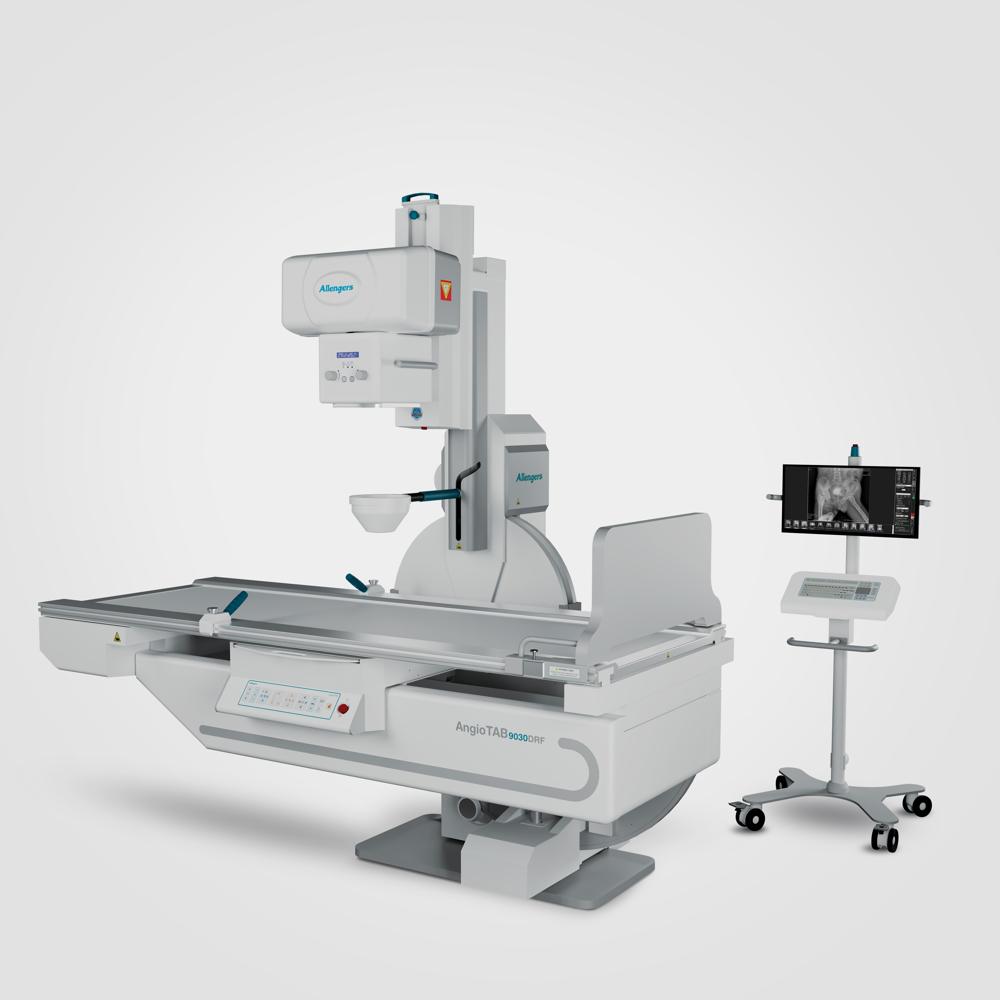

AngioTab 9030 DRF Minimum Order Quantity : 1 Application : Medical Material : MS Use : Hospital Product Type : AngioTab 9030 DRF Color Code : White Suitable For : Hospital OT
